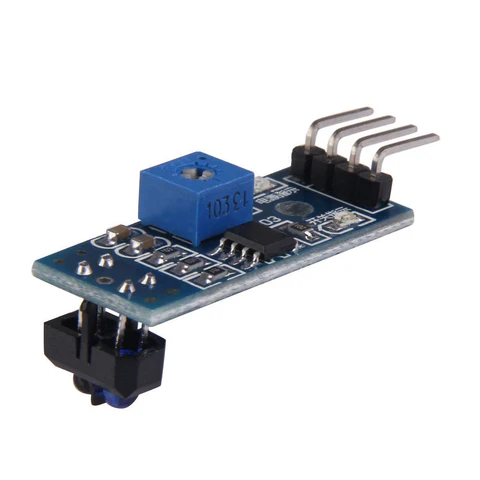

IR Line Tracking Sensor Module – Adjustable Sensitivity

₪15.00

رمز المنتج: MS-015 التصنيف:
  • Operating Voltage: 3.3V – 5V DC
  • Detection Method: Infrared Reflective Sensing
  • Output Type: Digital Output (DO) and Analog Output (AO)
  • Digital Output Level: LOW when object detected
  • Detection Distance: 5 mm – 10 mm
  • Sensitivity Adjustment: Onboard potentiometer
  • Indicator LEDs: Power LED and Detection LED
  • Interface Pins: AO, DO, GND, VCC
  • Sensor Type: Infrared emitter and receiver pair
  • Module Dimensions: 32 mm × 14 mm
  • Mounting Method: PCB module with pin header interface
  • Supported Platforms: Arduino, ESP32, Raspberry Pi, Microcontrollers
